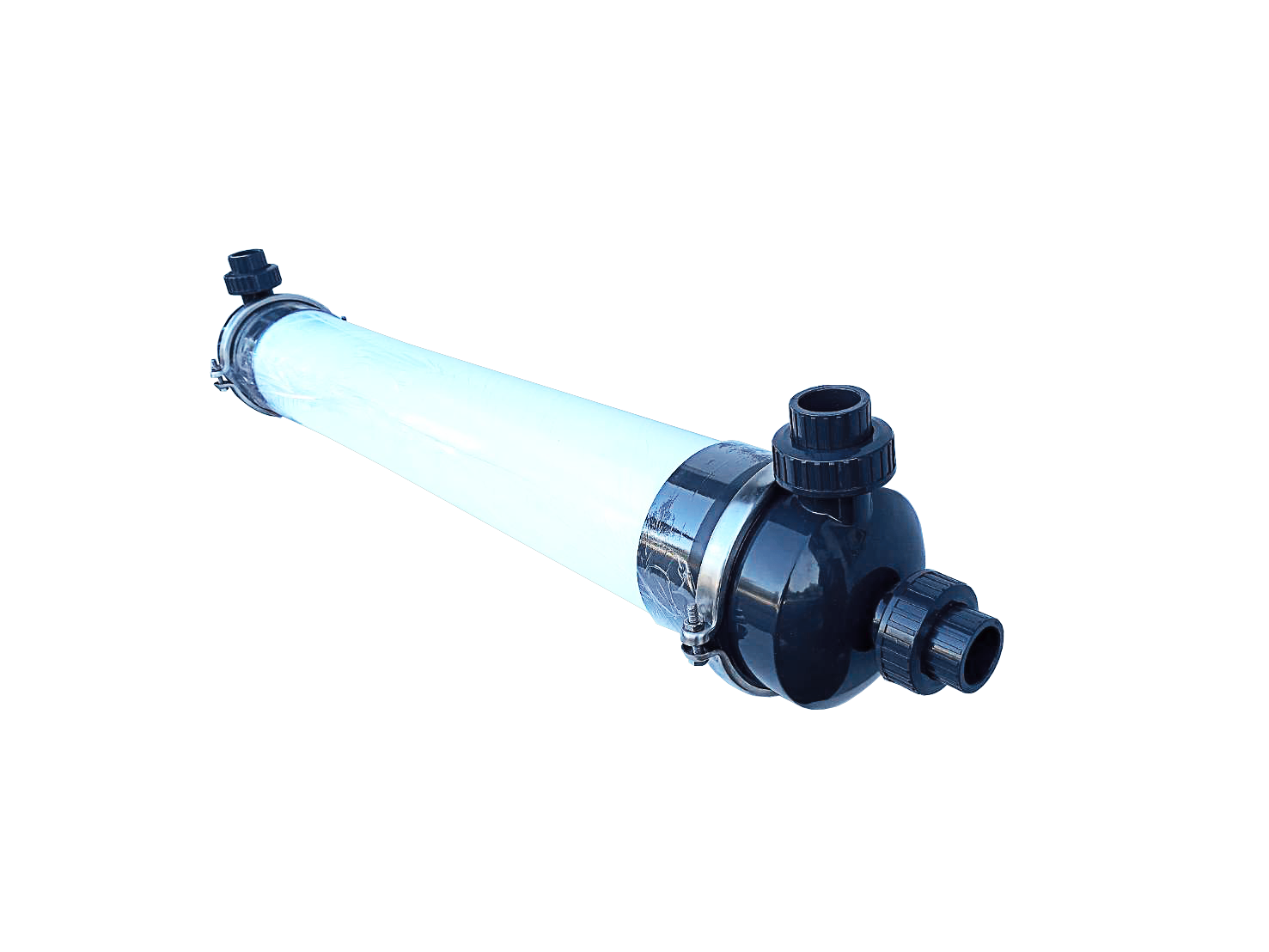

Cartridge with Membrane Filter : UF-6040

9,950฿

Specification:

  • Module: UF-6040
  • Design Flux: 40–80 L/m²/h
  • Produced Water Pollution Index (SDI15): <3
  • Expected Filtration Turbidity: <1 NTU
  • E. coli Removal Rate: >6 Log
  • Virus Removal Rate: >4 Log
  • Filter Method: Full Flow / Cross Flow Filtration
  • Membrane Material: PVC/PAN
  • Shell / Sealing Material: PVC / Epoxy Resin
  • Nominal Cutting Molecular Weight: 100,000 Dalton
  • Membrane Inner / Outer Diameter: 1.0 / 1.6 mm
  • Component Nominal Area: 15 m²
  • Maximum Water Inlet Pressure: 0.3 MPa
  • Maximum Transmembrane Pressure Difference: <0.2 MPa
  • Recommended Operating Differential Pressure: 0.01–0.1 MPa
  • Maximum Operating Temperature: 40°C
  • Tolerant pH Range: 3–9
  • Backwash Pressure: <0.2 MPa

3 in stock

Categories: , Tags: , SKU: BOI-04285

Filter / UF membrane

  • There are many model sizes to choose from.
  •  Membrane for OR system
  •  Slogan – Membrane material made from Grade A polyplan, easy to replace, reducing the cost of maintenance of the filter system.
  •  UF (Ultra Filtration) filter is responsible for filtering small sediments, chlorine, germs (some types) at a maximum resolution of 0.01 microns. No electricity required and no waste water. Therefore, it is suitable for people who do not want to run and connect the sewer pipes. Service life is about 1 year.

Additional advantages of the Filter / UF membrane

  • Does not cause leftovers
  • Able to separate products as needed
  • Relatively low power consumption for separation
  • Can be separated without changing the phase
  • Install, control, automatic separation
  • Compact size does not take up space
  • No chemical reactions are involved.
